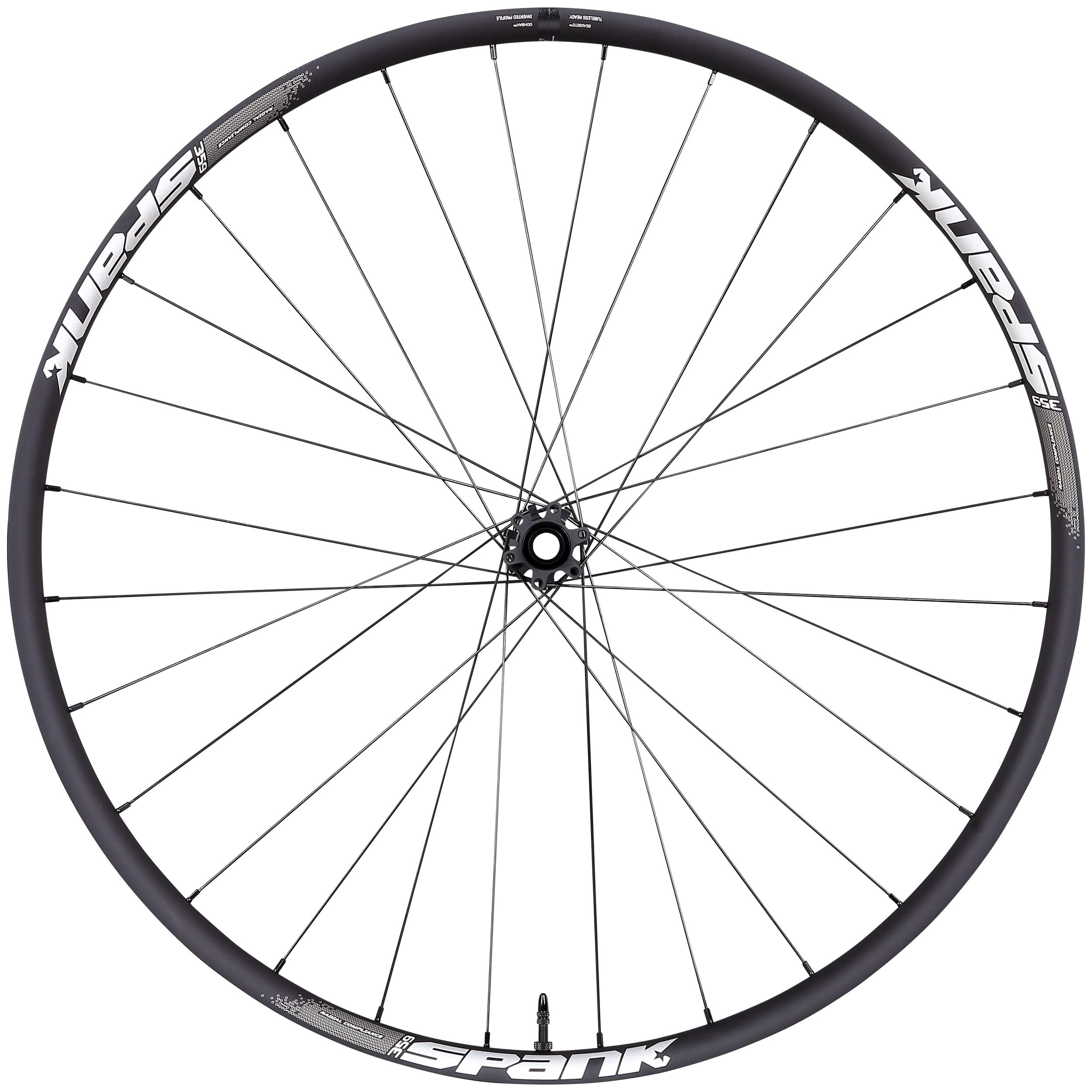

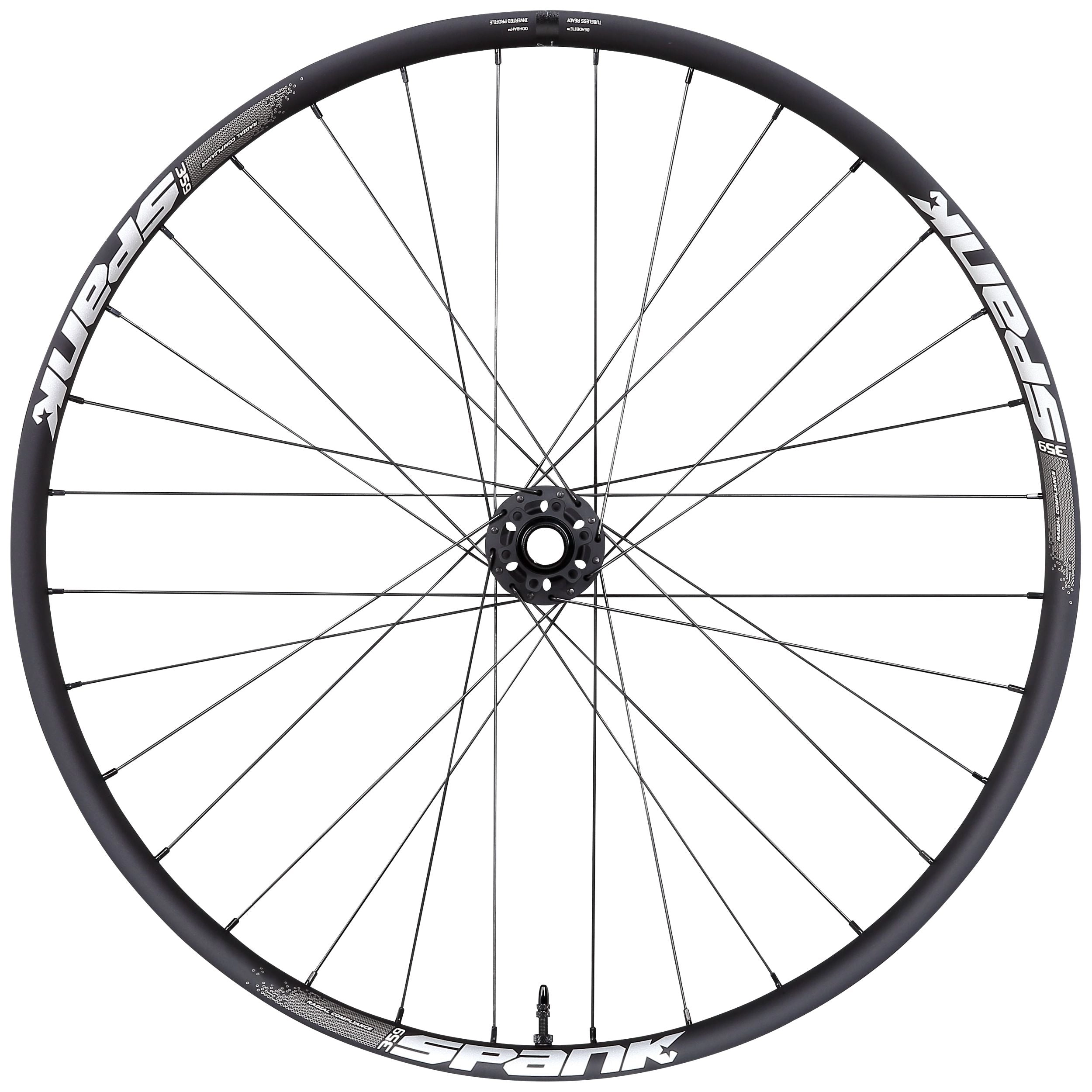

Hand-built to A-Class specifications, the 359 wheels with SPANK Hex Drive hub is the premium lightweight performance offer from the SPANK wheelhouse and is trusted by pros on the Enduro World Series circuit.
- Moderately low 19mm profile height and wide width balances the benefits of radial compliance with high lateral stiffness and predictable handling
- Radial Compliance improves traction over bumps and chatter while reducing negative feedback to the rider. Performance and comfort are improved
- 5mm inner width is extremely versatile, fitting tires from 2.0” to 2.6”, and even allowing size tire use without negative squaring off of tire profiles
- Bead Bite tubeless hooks enhance tubeless performance and tire security, even at lower pressures
REAR WHEELS TO PAIR WITH:
VARIANT SPECS
| HUB | HUB SPACING | BOOST | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 27.5" | HEX J TYPE | BOOST 15X110 | BOOST | 32H | BOOST 20X110 | 928g | 560 | 584x30.5 | R-272 | L-270 |
| HEX J TYPE | 20X110 | - | 32H | 15X100 | 916g | 560 | 584x30.5 | R-272 | L-270 | |
| HEX STRAIGHT PULL | BOOST 15X110 | BOOST | 28H | - | 845g | 560 | 584x30.5 | R-285 | L-284 | |
| 29" | HEX J TYPE | BOOST 15X110 | BOOST | 32H | BOOST 20X110 | 927g | 598 | 622x30.5 | R-292 | L-290 |
| HEX J TYPE | 20X110 | - | 32H | 15X100 | 959g | 598 | 622x30.5 | R-292 | L-290 | |
| HEX STRAIGHT PULL | BOOST 15X110 | BOOST | 28H | - | 888g | 598 | 622x30.5 | R-285 | L-284 |
COMPATIBLE ADAPTERS FOR SPANK HEX J-TYPE FRONT HUBS
Boost F15/20 | |
|---|---|
F15/20 | |
All Hex J-Type Front Hubs | |
|
COMPATIBLE SERVICE KITS FOR SPANK HEX J-TYPE FRONT HUBS
COMPATIBLE ADAPTERS FOR SPANK HEX STRAIGHTPULL FRONT HUBS
Boost F15 |
|---|
COMPATIBLE SERVICE KITS FOR SPANK HEX STRAIGHTPULL FRONT HUBS
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN | TRAIL | ENDURO | FREERIDE |
|---|---|---|---|
| ✔ | ✔ | ✔ | ✔ |
| DOWNHILL | GRAVEL | XC | E-BIKE |
| ✔ | - | - | * |
* Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as a separate purchase in HG, XD, and Microspline. (See )
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact | ✔ | ✔ | ✔ |
| Medium Impact | ✔ | ✔ | ✔ |
| Light impact | ✔ | ✔ | ✔ |
RIM SPECIFICATIONS
| HOLE COUNT: | 32 / 28 |
|---|---|
| INNER WIDTH (mm): | 30.5 |
| OUTER WIDTH (mm): | 35 |
| PROFILE HEIGHT: | 19 |
| TYRE FIT | 2.0" to 2.6" |
BUILD SPECIFICATIONS
| 32H | 28H | |
| BUILD: | A-Class Handbuilt | A-Class Handbuilt |

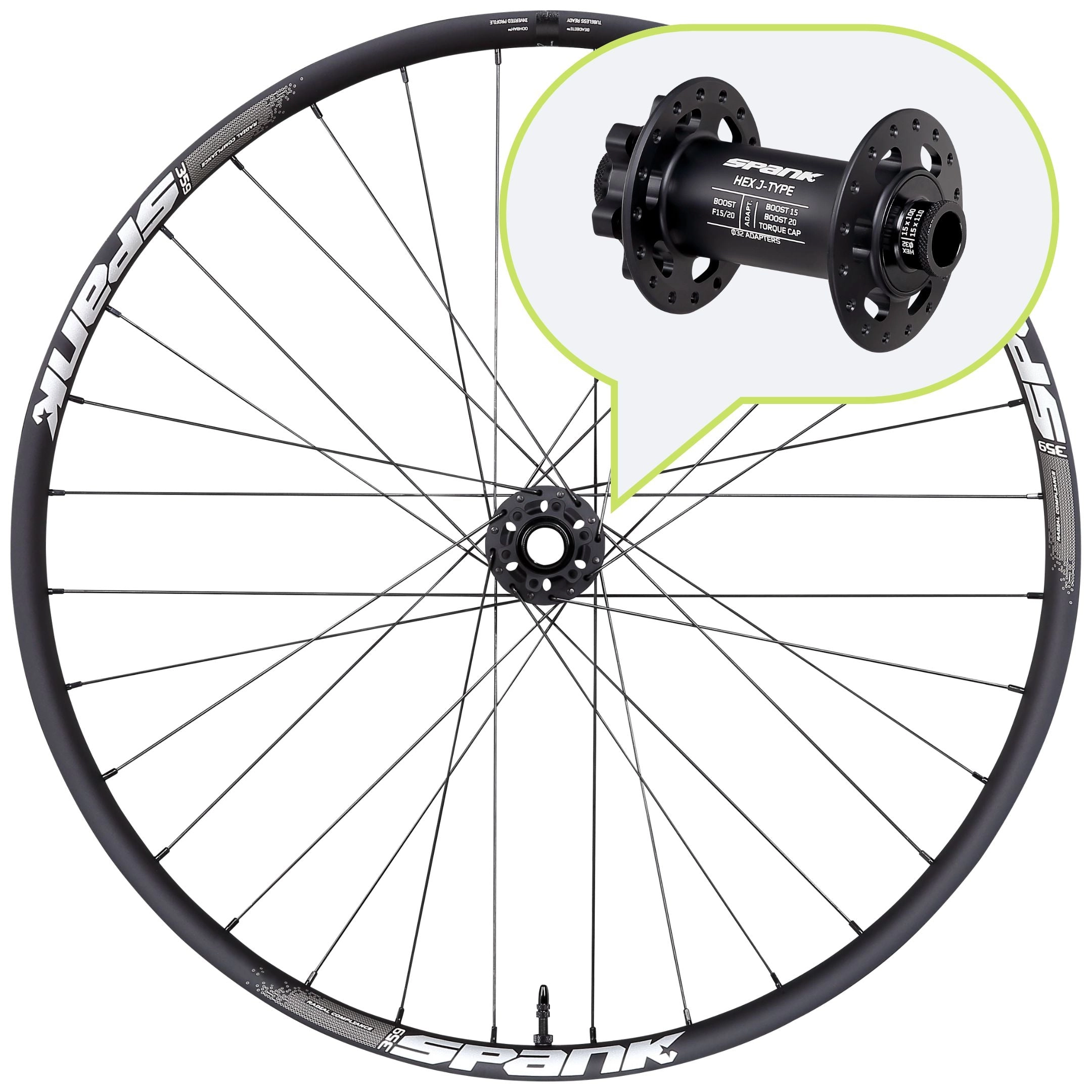

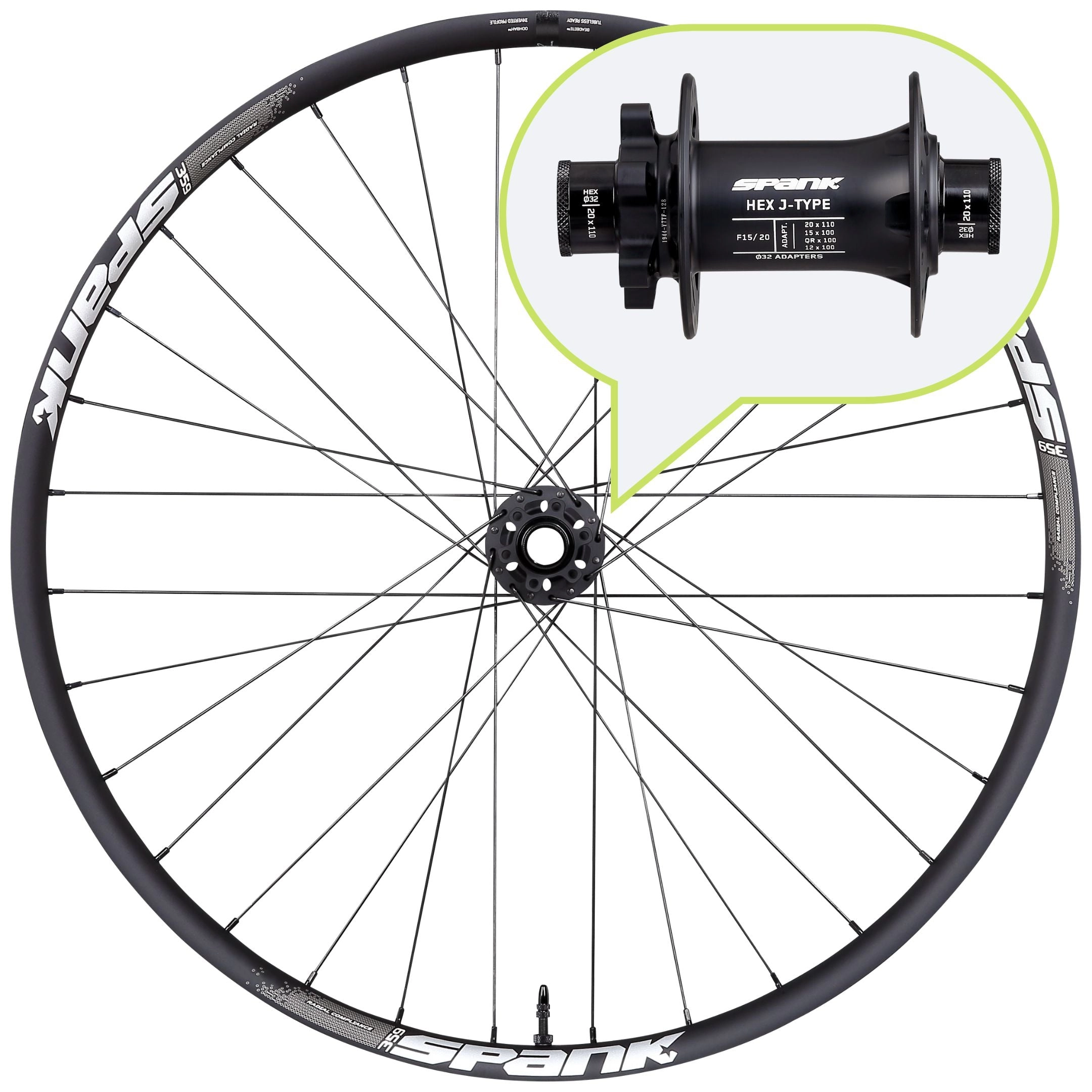

| HUB: | SPANK HEX J-TYPE | SPANK HEX STRAIGHT PULL |
| SPOKES: | J-Hook, triple-butted 2.2/1.8/2.0 | J-Hook, triple-butted 2.2/1.8/2.0 |
| NIPPLES: | Brass external | Alloy External |
| LACING: | 3 cross lacing | 3 cross lacing |
| VALVE: | F/V Presta | F/V Presta |
| TUBELESS: | Tubeless taped & valved | Tubeless taped & valved |
